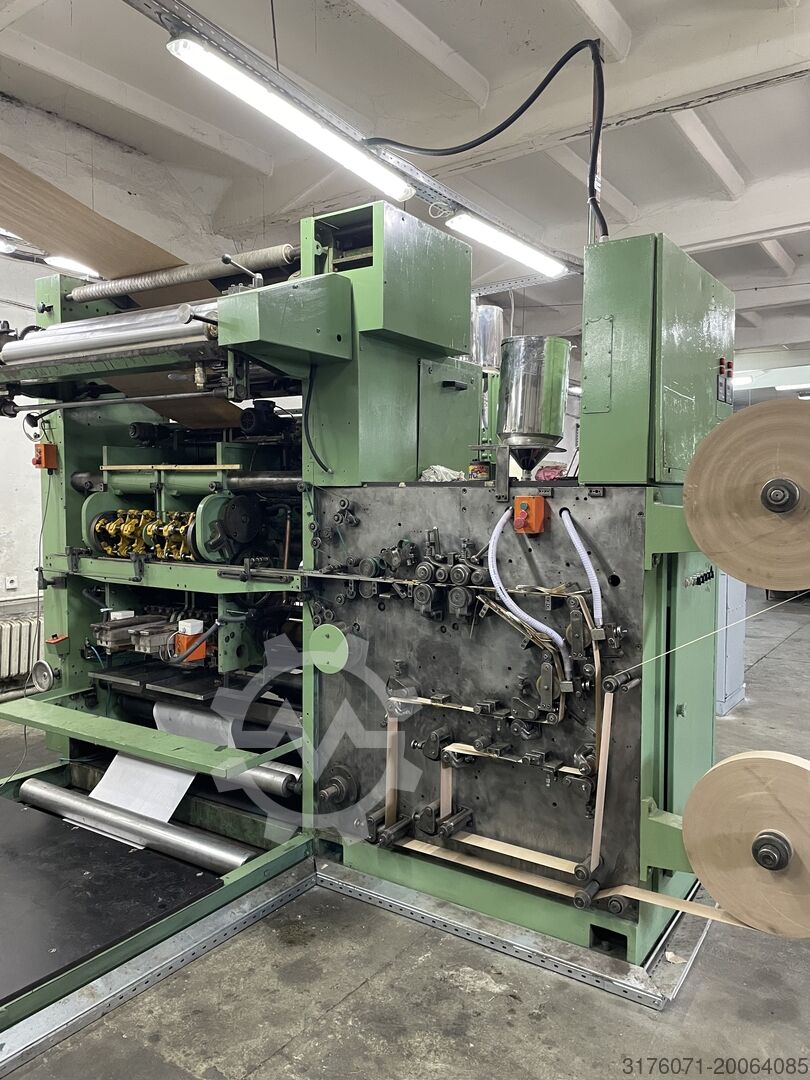

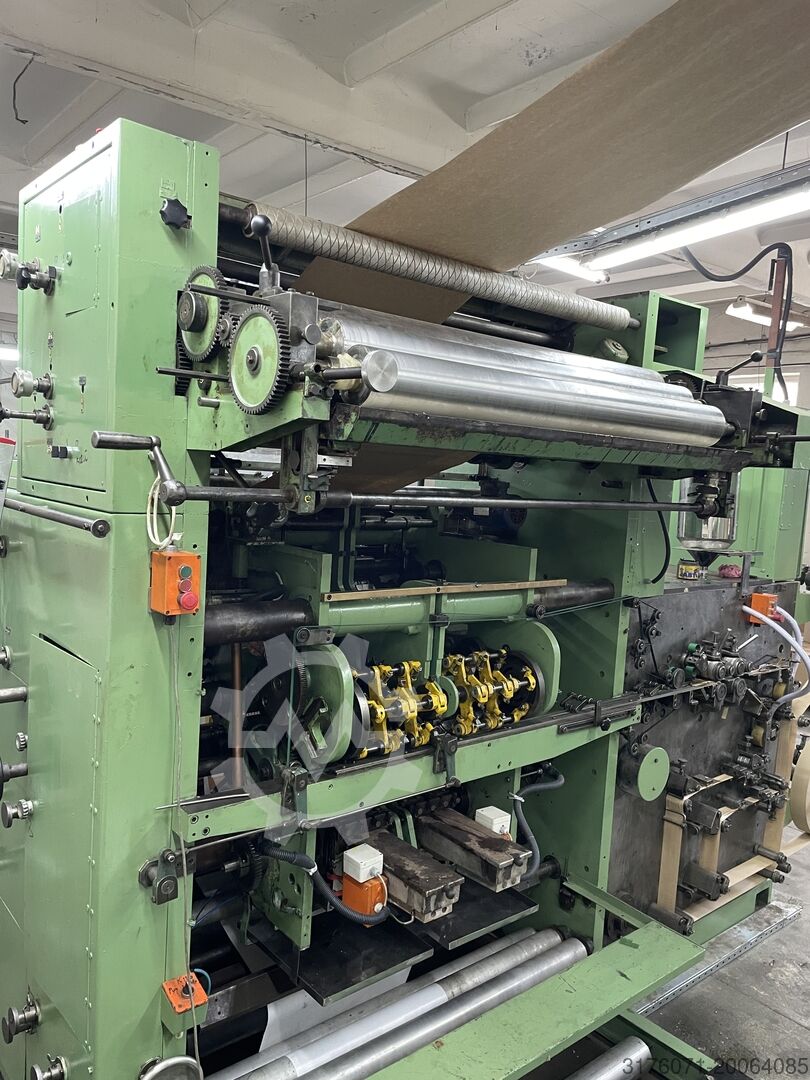

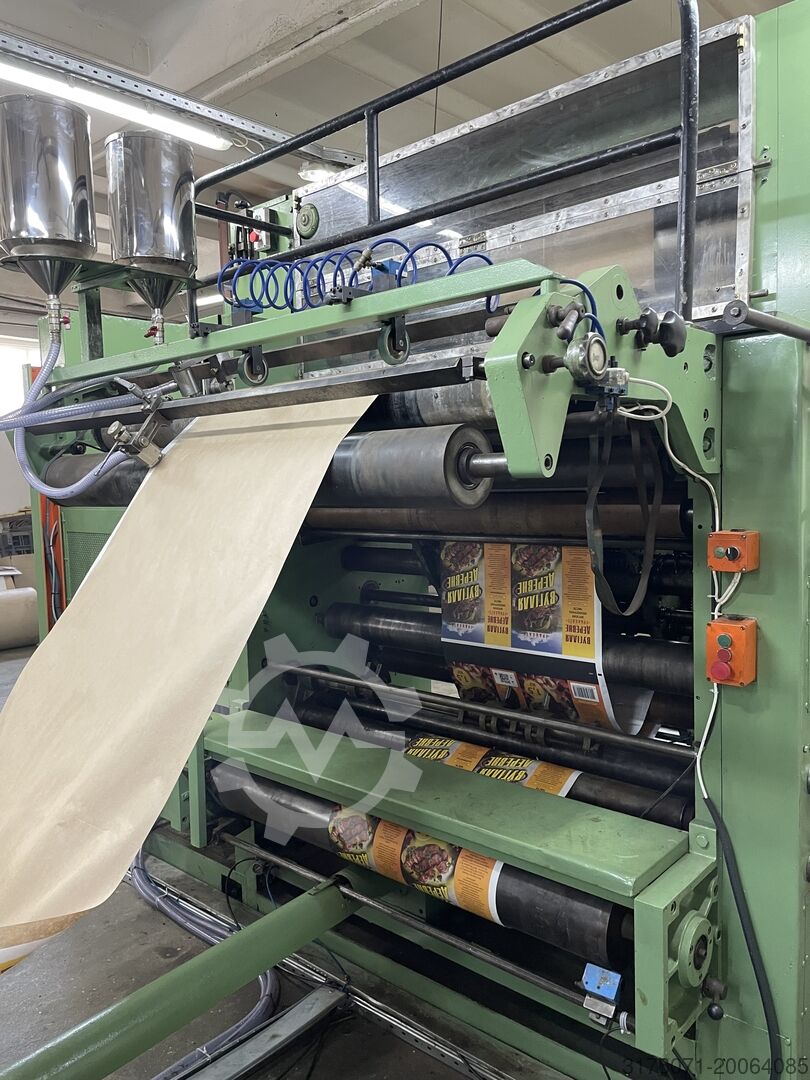

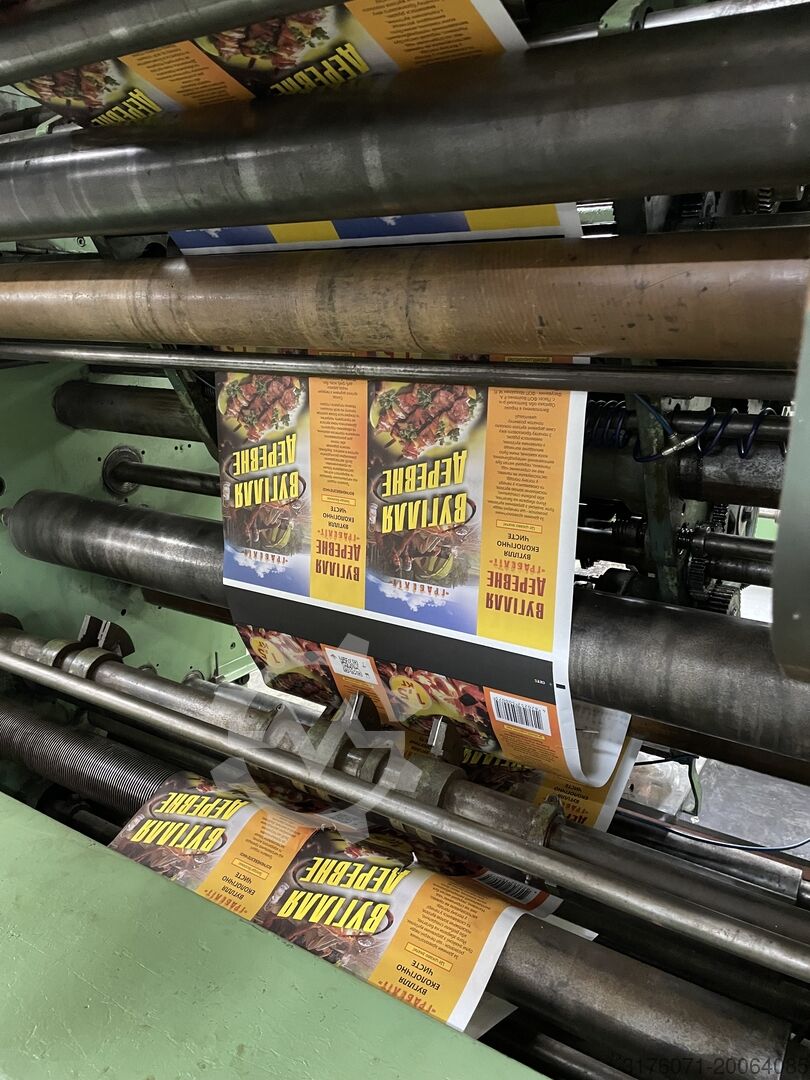

Windmöller & Hölscher Triumph 3C — flat handle bag line

Technical specifications

Manufacturer

Windmöller & Hölscher (Germany)

Model

Triumph 3C

Bag type

Square-bottom paper bags with flat handle

Year of manufacture

1991, fully refurbished in 2023

Condition

Very good, completely refurbished in 2023

Handle unit

Flat handle unit installed

Operation modes

1-ply and 2-ply

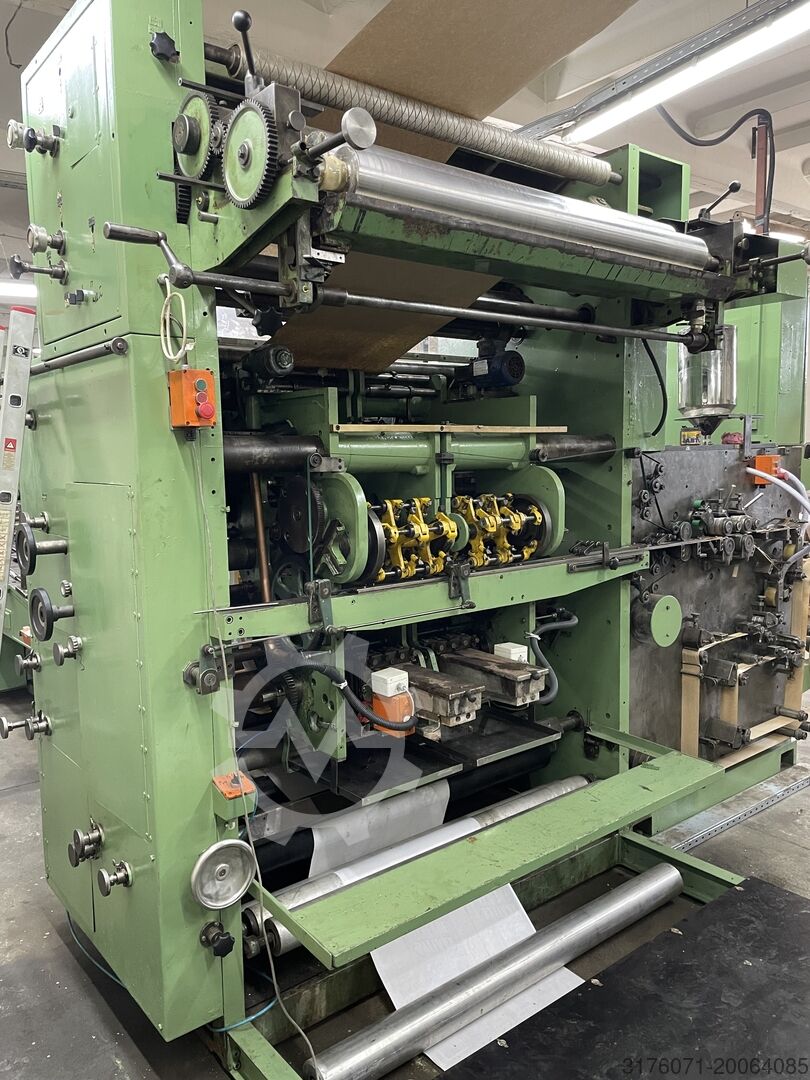

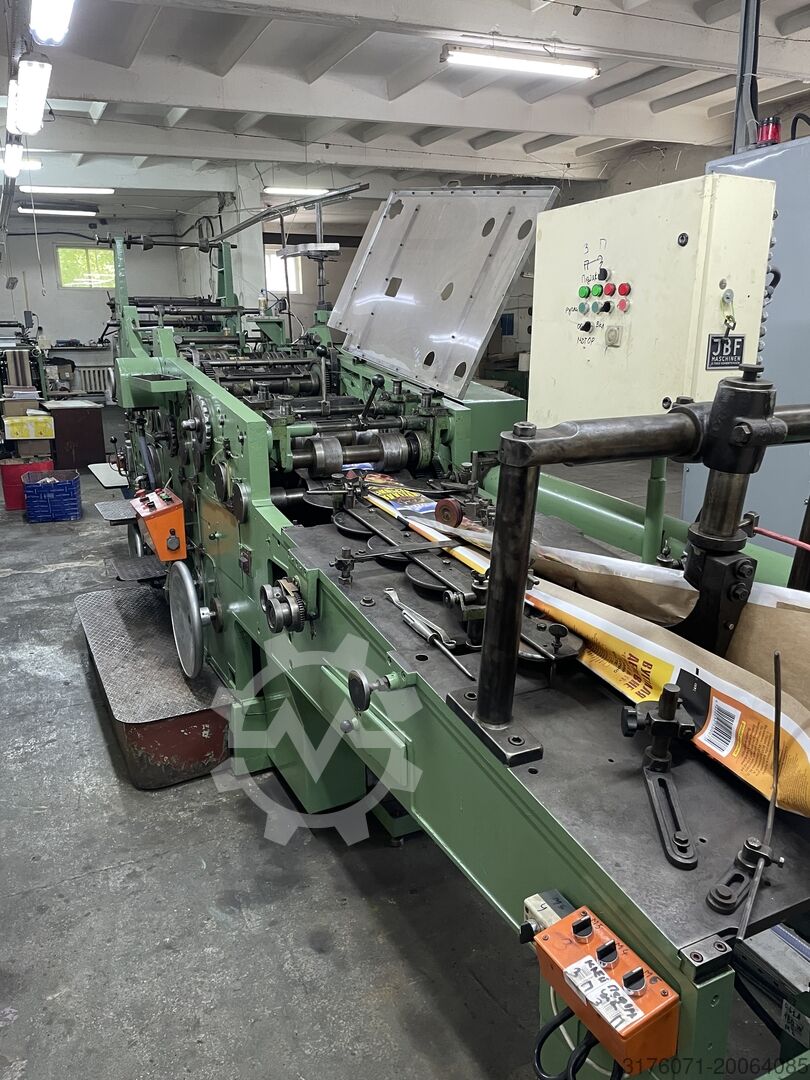

Bottom section

Slit equipment for bottom formation

Bag width (without handle)

160–320 mm

Bag width (with handle)

250–320 mm

Bag gusset (without handle)

60–180 mm

Bag gusset (with handle)

up to 180 mm (handle centres from 250 mm)

Bag cutting length (without handle)

350–610 mm

Bag cutting length (with handle)

350–580 mm

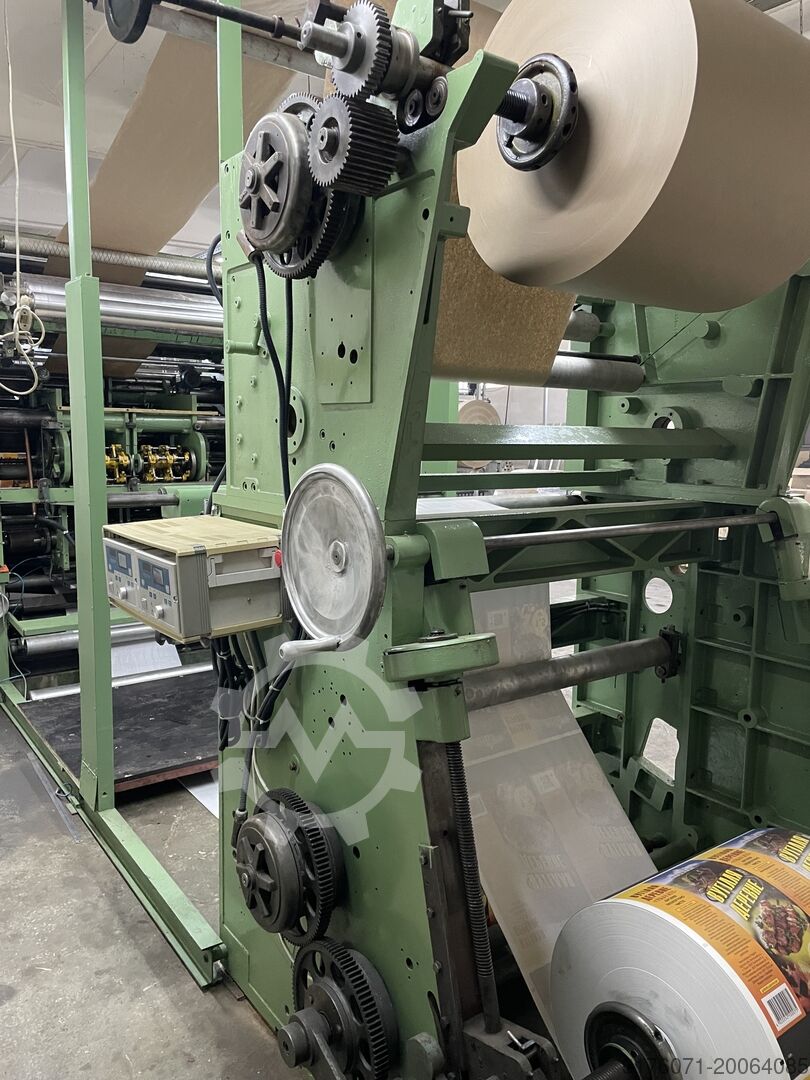

Roll width

460–1020 mm

Max roll diameter

outer layer 1500 mm / inner layer 1300 mm

Core diameter

76 mm

Paper grammage

1 ply 50–120 gsm / 2 ply up to 100 + 80 gsm

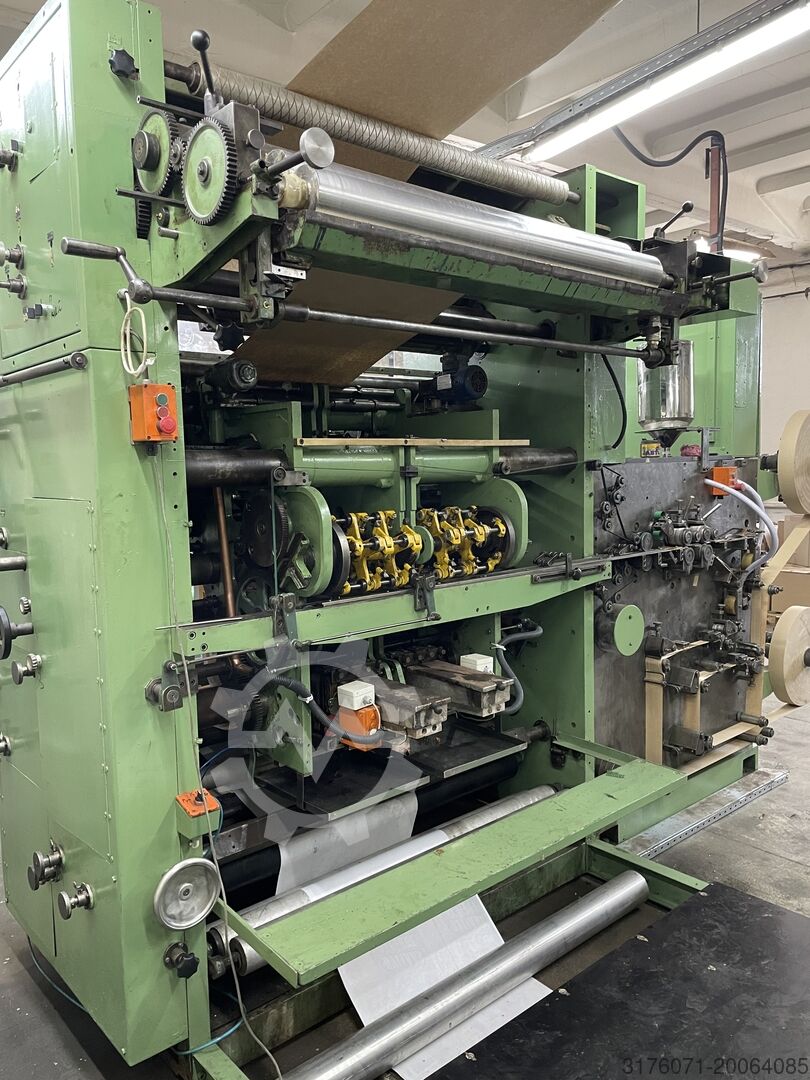

Number of forming plates

7

Forming plate sizes

160, 180, 240, 260, 280, 300, 320 mm

Gear sizes (cutting length)

35, 36, 41, 45, 48, 50, 55, 56, 57, 58, 62

Speed (with handle)

100 pcs/min

Speed (without handle, 1 ply)

150 pcs/min

Speed (without handle, 2 ply)

120 pcs/min

Total electrical load

25 kW

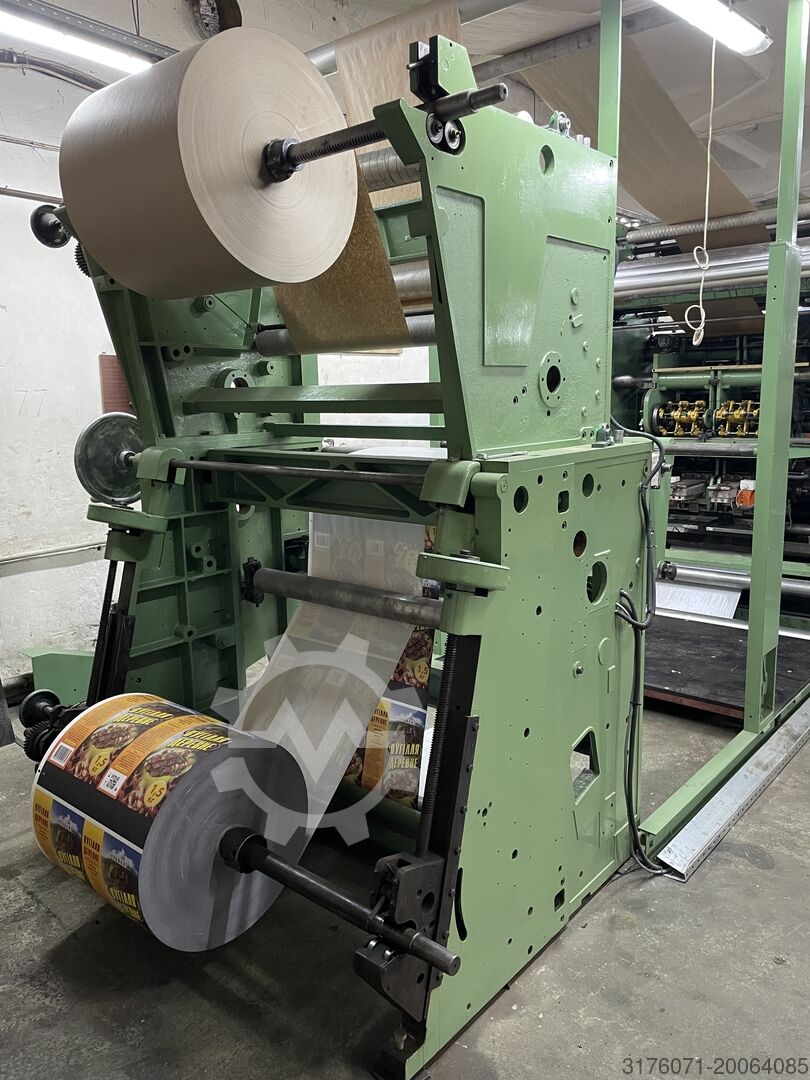

Roll loading

automatic for outer layer, forklift for inner layer

Machine dimensions (W × L × H)

4.5 × 13 × 3.3 m
